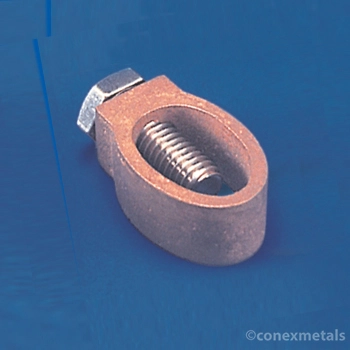

Rod To Cable Clamps

Rod To Cable Clamps

Earth Rod to Cable

Earth Rod to Cable
Earth Rod Shank Ø mmConductor Range mm2L mmW mm H mm Unit Weight kgPart
9.56-353220160.04A
12.76-353425150.05B
35-704125170.08C
6-163425150.05B
14.216-704125170.08C
70-1854830190.1D
6-163425150.05B
15.016-704125170.08C
70-1504830190.1D
16.06-704125170.08C
70-1204830190.1D
17.26-954830190.1D
20.06-704830190.1D

Rod To Cable Clamps line drawingMaterial: Gunmetal with M10 x 25mm Phosphor Bronze Set Screw.
(ERR1035 in Naval Brass with M6 x 20mm Stainless Steel Set Screw).
* Suitable for use with 8mm Ø solid circular copper conductor.

Rod to cable clamps, also known as rod to wire clamps or rod to ground wire clamps, are specialized electrical fittings used to establish a mechanical and electrical connection between a grounding rod (or ground rod) and a grounding conductor, typically a Copper or Aluminium cable. These clamps are an essential component of grounding systems, providing a reliable path for fault currents to dissipate safely into the ground.

Key features and uses of rod to cable clamps include:

  1. Design: Rod to cable clamps typically consist of two parts—a clamp that securely holds the grounding conductor (cable) and a bolt or screw that connects the clamp to the grounding rod.
  2. Material: Rod to cable clamps are made of high-conductivity materials, such as Copper or Bronze, to ensure a low-resistance connection.
  3. Size: The size of the clamp is designed to accommodate the specific diameter of the grounding conductor, ensuring a snug and effective connection.
  4. Installation: Rod to cable clamps are relatively easy to install. The cable is inserted into the clamp, and the clamp is then secured to the grounding rod using the provided bolt or screw.
  5. Grounding System: Rod to cable clamps are a critical part of the grounding system, ensuring proper bonding between the grounding conductor and the grounding electrode (rod).
  6. Lightning Protection: In lightning protection systems, rod to cable clamps are used to connect the lightning protection system’s down conductor (cable) to the grounding rod, providing a safe path for lightning currents to discharge into the ground.
  7. Electrical Safety: Properly installed rod to cable clamps ensure the continuity of the grounding system, reducing the risk of electrical hazards and providing a reliable path for fault currents.
  8. Outdoor Applications: Rod to cable clamps are commonly used in outdoor installations, such as utility poles, communication towers, electrical substations, and other grounded structures.
