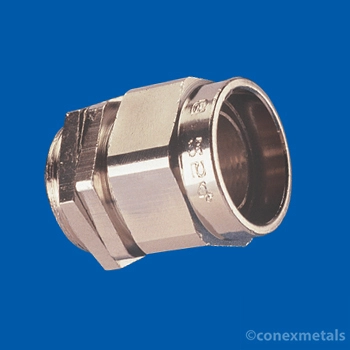

Alco Type Brass Cable Glands

Technical Datasheet
Gland size	Thread size 'C' metric	Mininum Length of thread 'D'	Cable Range
			Max 'A'	Max 'B'
G-204	M20	9	12.5	17
G-206	M20	9	14.5	20
G-254	M25	9	16	22
G-256	M25	10	18.5	24
G-324	M32	10	23.5	29.5
G326	M32	10	27.5	34
G-405	M40	13	33.5	41.5
G-503	M50	13	39.5	48.5
G-505	M50	13	44.5	54.5
G-636	M63	14	56	66
G-753	M75	15	64	75.5
G-755	M75	15	68	78

Standard: Compliant with BS 6121.
Ingress Protection (IP) Rating: IP30, suitable for dry environments.
Material: High-Quality Brass (BS 2874 CZ121 Pb3).
Finish Options: Available in Natural Brass or Nickel-Plated finish.
Application: Designed for dry indoor use with all types of SWA cables.
Operating Temperature: Capable of withstanding temperatures from -80°C to +600°C.
Function: Ensures secure mechanical cable retention and maintains electrical continuity through the armored wires.
