Brass Gland Section Chart

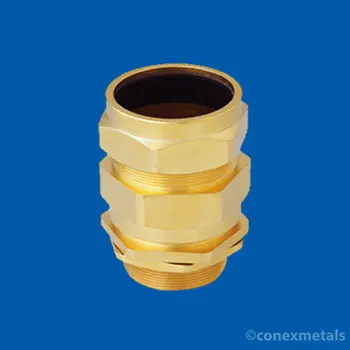

Brass cable glands play a crucial role in securing and protecting electrical cables, ensuring mechanical retention and maintaining electrical continuity. The following table provides a detailed selection chart to assist in choosing the correct brass gland size for various cable configurations and conductor sizes.
Key Features of Brass Cable Glands:
- Durability: Made from high-quality Brass for long-lasting performance.
- Wide Range: Suitable for different cable sizes and conductor types.
- Applications: Ideal for industrial and commercial electrical installations.
| BRASS CABLE GLAND SELECTION CHART | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Size Conductor | Number Of Cores | |||||||||||||
| Nom. Area mm² | Neutral | 1 | 2 | 3 | 3 ½ | 4 | 5 | 7 | 10 | 12 | 19 | 27 | 37 | 4 |
| 1.5 | - | - | 16 | 16 | - | 20S | 20S | 20S | 20 | 20 | 25 | 25 | 32 | 32 |
| 2.5 | - | - | 20S | 20S | - | 20S | 20S | 20 | 25 | 25 | 25 | 32 | 32 | 40 |
| 4 | - | - | 20S | 20 | - | 20 | 20 | 25 | 25 | 32 | 32 | 40 | ||
| 6 | - | - | 20 | 20 | - | 20 | ||||||||
| 10 | - | - | 25 | 25 | - | 25 | ||||||||
| 16 | - | - | 25 | 25 | - | 25 | ||||||||
| 25 | 16 | - | 32 25 | 32 25 | 32 | 32 32 | ||||||||
| 35 | 16 | - | 32 25 | 32 32 | 32 | 40 32 | ||||||||
| 50 | 25 | 25 | 32 | 32 | 32 | 40 | ||||||||
| 70 | 35 | 25 | 32 | 40 | 40 | 40 | ||||||||
| 95 | 50 | 25 | 40 | 40 | 50S | 50S | ||||||||
| 120 | 70 | 32 | 40 | 50S | 50 | 50 | ||||||||
| 150 | 70 | 32 | 50S | 50 | 50 | 63S | ||||||||
| 185 | 95 | 32 | 50 | 50 | 63S | 63 | ||||||||
| 240 | 120 | 40 | 50 | 63S | 63 | 75S | ||||||||
| 300 | 150 | 40 | 63S | 63 | 75S | 75 | ||||||||
| 300 | 185 | - | - | - | 75 | - | ||||||||
| 400 | 185 | 50S | 63 | 75S | 90 | 90 | ||||||||
| 500 | - | 50 | - | |||||||||||
| 630 | - | 50 | - | |||||||||||
| 800 | - | 63S | - | |||||||||||
