Transformer Assembly Parts: Eye Bolts and Bronze Terminals, DIN Connection Flag Eye Bolt Terminal of parts for High Voltage and Low Voltage Transformer Bushings
Transformers are critical components in electrical power distribution systems. Their proper assembly and maintenance are essential for ensuring reliable operation. This page focuses on two important parts of transformer assemblies: eye bolts and bronze terminals used in transformer bushings.Solid Bushings:
As a standard product we can offer both DIN standard bushings and the latest EN range of bushings, these product cover the requirements of distribution and power transformer manufacturers. This will have transformer terminals Eye bolts Tank connectors spade terminals and Copper studs with Brass lock nuts
We can offer ratings from 1kV through to 52kV and up to 12500A with a wide variety of creepage distances to meet all environmental conditions.
Bronze Eye Bolts in Transformer Assemblies (with Tin Pating)
Eye bolts are crucial components in transformer assemblies, serving multiple purposes:
- Lifting and Handling: Eye bolts provide secure attachment points for lifting the transformer during installation, maintenance, or relocation.
- Securing Components: They are used to fasten various parts of the transformer, ensuring structural integrity.
- Grounding: In some designs, eye bolts may be part of the grounding system, helping to protect against electrical faults.
The eye bolt shown in the image is typically made of stainless steel or galvanized steel for corrosion resistance. It’s important to choose eye bolts rated for the appropriate load capacity and to inspect them regularly for signs of wear or damage.
Bronze Terminals in Transformer Bushings
Bronze terminals are essential components of transformer bushings, which insulate and support the conductors entering or exiting the transformer tank. Key features of bronze terminals include:
- Excellent Conductivity: Bronze offers high electrical conductivity, ensuring efficient power transmission.
- Corrosion Resistance: Bronze’s natural resistance to corrosion makes it ideal for outdoor and high-humidity environments.
- Durability: Bronze terminals can withstand high temperatures and mechanical stress, contributing to the longevity of the transformer.
- Easy Machining: Bronze can be precisely machined to create secure connections and optimal contact surfaces.

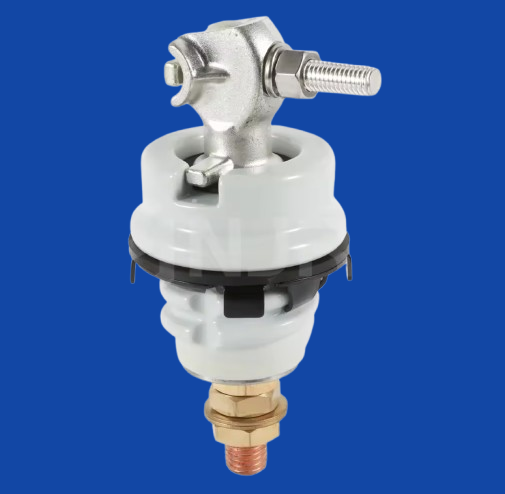

In the image, we can see a bronze terminal at the base of the bushing. This terminal provides a secure connection point for the conductor, ensuring reliable electrical contact and easy maintenance.
Importance of Proper Assembly
The correct installation and maintenance of eye bolts and bronze terminals are crucial for:
- Ensuring the safety of personnel during transformer handling and maintenance
- Maintaining the electrical integrity of the transformer
- Preventing issues such as loose connections, overheating, or electrical faults
- Extending the operational life of the transformer
Regular inspections and proper torque application during assembly are essential practices for maintaining these critical components.
Understanding the role and importance of these parts helps in the proper assembly, maintenance, and troubleshooting of transformer systems, ensuring their reliable and efficient operation in power distribution network.
