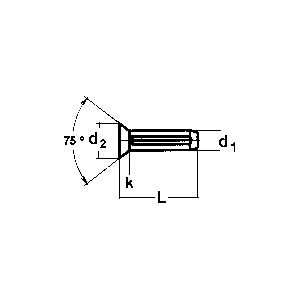

DIN 1477 Countersunk head grooved pin
DIN 1477 Countersunk head grooved pin
| DIN 1477 COUNTERSUNK HEAD GROOVED PIN | ||
|---|---|---|
| d1 | d2 | k |
| 1.4 | 2.5 | 0.7 |
| 1.6 | 2.8 | 0.8 |
| 1.7 | 3 | 0.9 |
| 2 | 3.5 | 1 |
| 2.3 | 4 | 1.2 |
| 2.5 | 4.4 | 1.2 |
| 2.6 | 4.5 | 1.3 |
| 3 | 5.2 | 1.4 |
| 4 | 7 | 2 |
| 5 | 8.8 | 2.5 |
| 6 | 10.5 | 3 |
DIN 1477 Countersunk head grooved pin
| DIN 1477 COUNTERSUNK HEAD GROOVED PIN | ||
|---|---|---|
| d1 | d2 | k |
| 1.4 | 2.5 | 0.7 |
| 1.6 | 2.8 | 0.8 |
| 1.7 | 3 | 0.9 |
| 2 | 3.5 | 1 |
| 2.3 | 4 | 1.2 |
| 2.5 | 4.4 | 1.2 |
| 2.6 | 4.5 | 1.3 |
| 3 | 5.2 | 1.4 |
| 4 | 7 | 2 |
| 5 | 8.8 | 2.5 |
| 6 | 10.5 | 3 |
